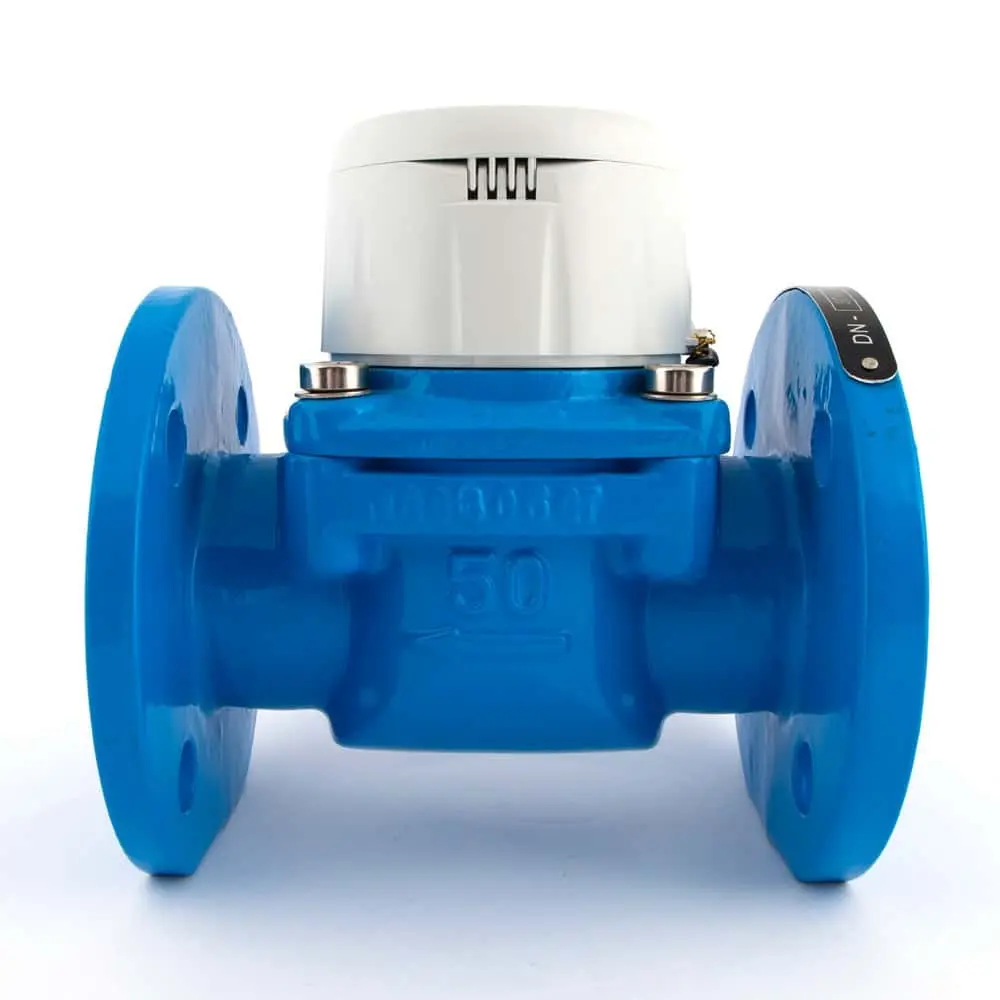

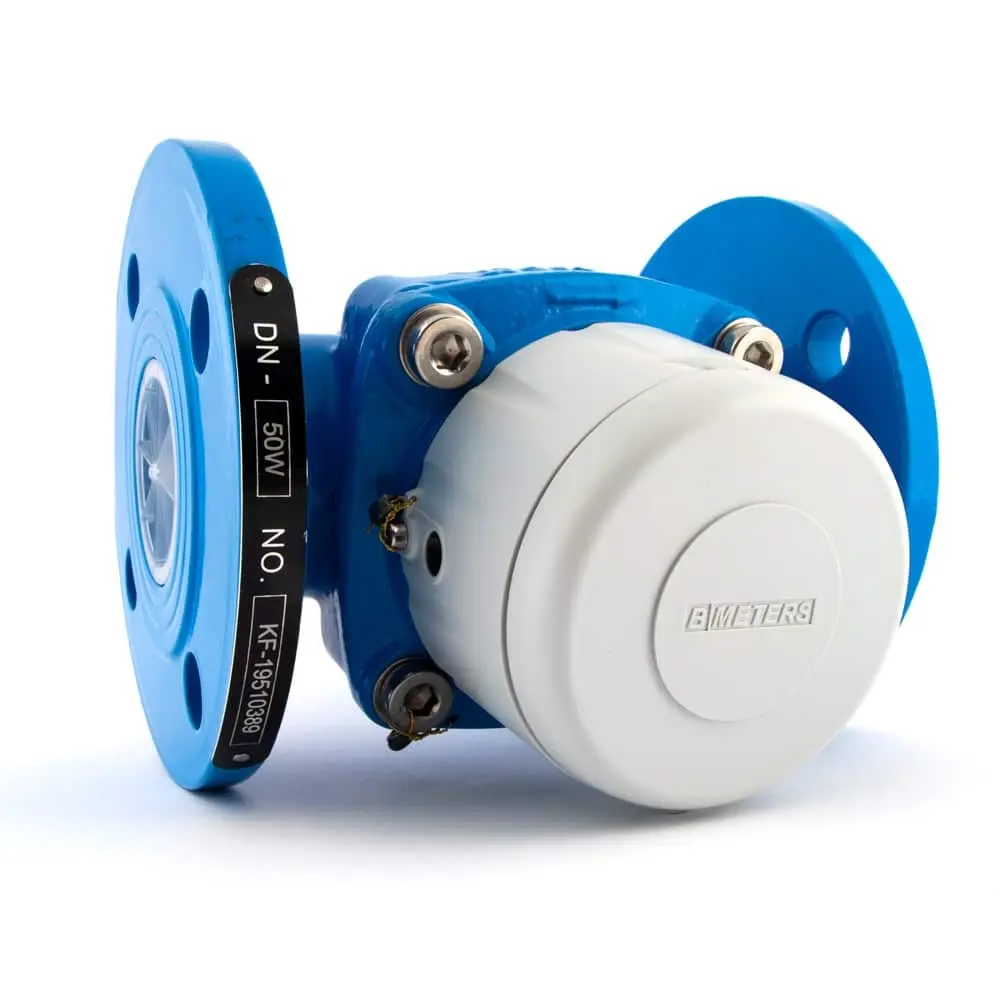

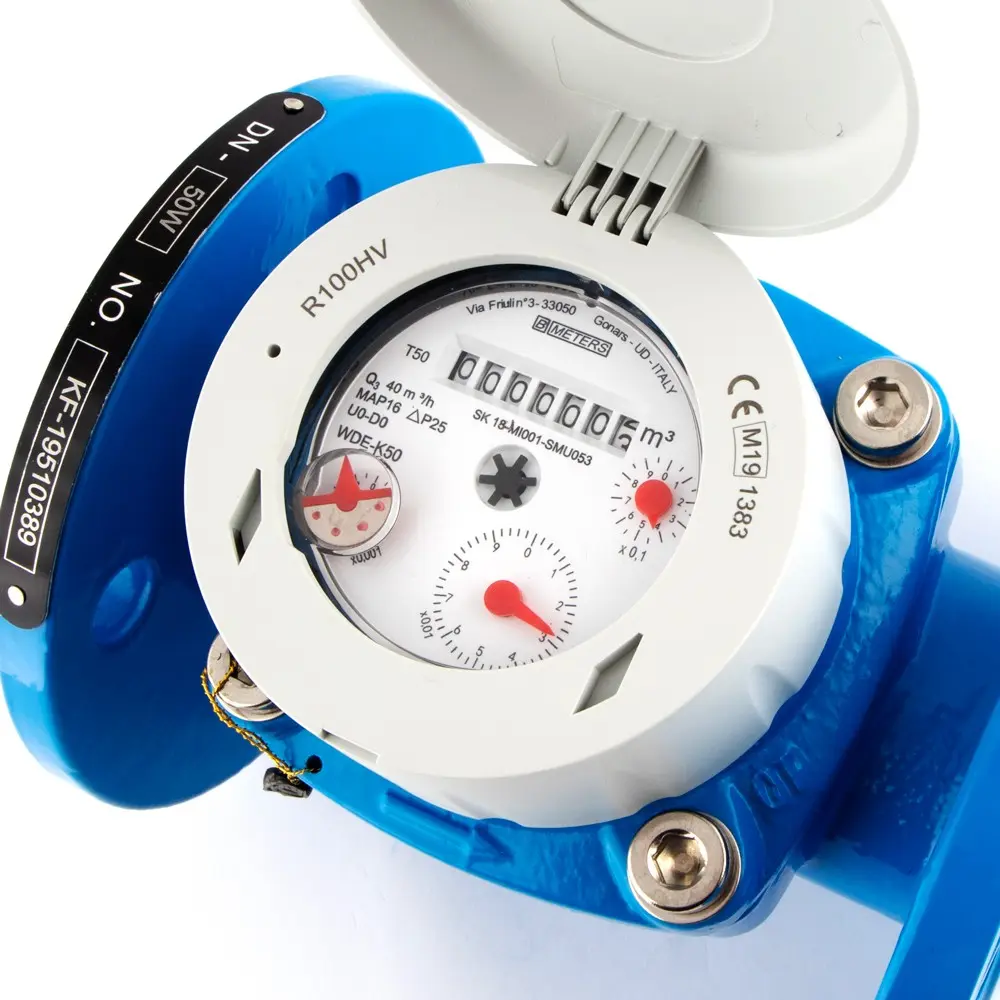

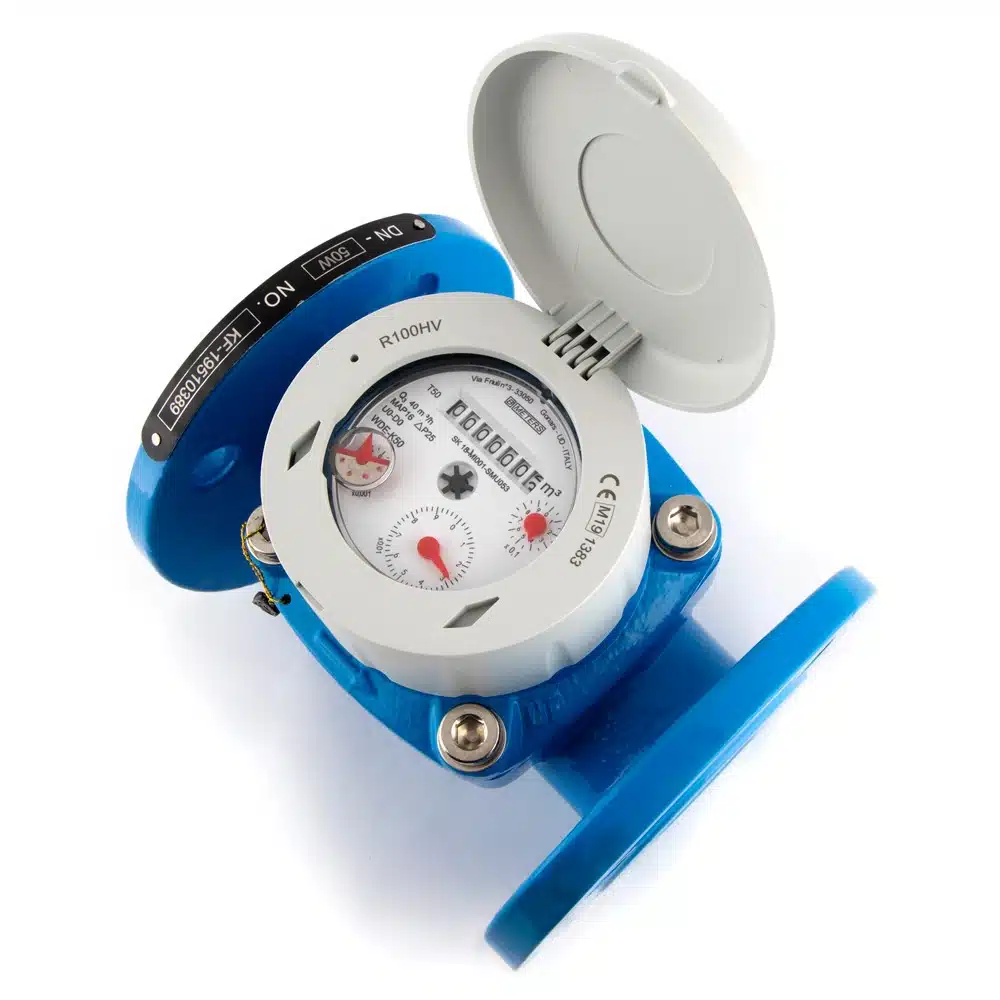

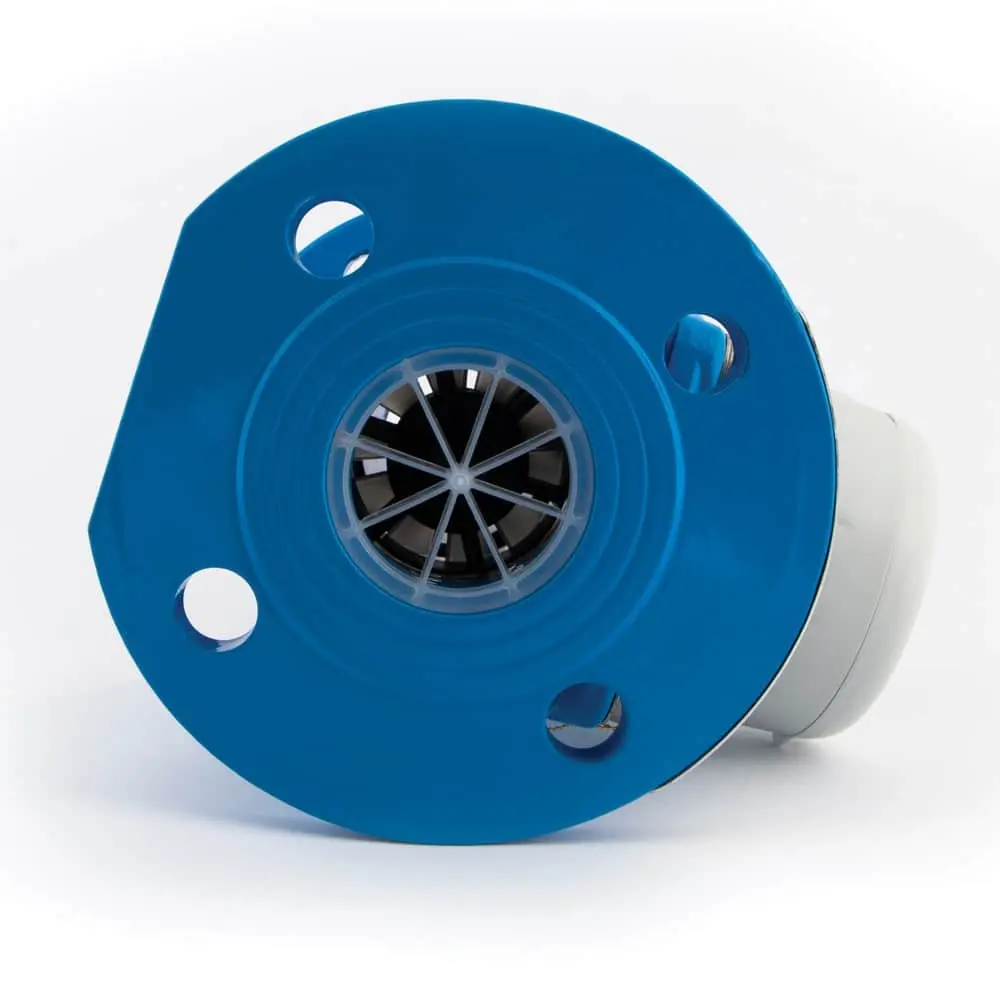

WDE-K50 Woltmann Multi-Jet Flanged Water Meter (2"-8")

WDE-K50 Woltmann Multi-Jet Flanged Water Meter (2"-8")

https://www.snsmiddleeast.ae/web/image/product.template/4475/image_1920?unique=89da9ca

The WDE-K50 is a horizontal Woltmann with a removable insert. High measuring range (R250). Sealed counter mechanism with a magnetic transmission.

Inductive pre-equipment for the installation of M-Bus Wired and Wireless OMS data communication modules, non-magnetic pulse output, and, upon request, LoRa & NB-IoT.

0.00 AED 0.0 AED 0.00 AED

  • Sizes
  • Media Type
  • Connection Type
  • Communication Type
  • Water Type

This combination does not exist.

Contact Us
Media Type: Water
Connection Type: Flanged

Italian Manufactured

2.2 million units on average sold annually

Discover the range

Product Information

Category Manufacturer Part Code Size Description Mechanism MID Class Communication Length Typ Lead Time
Water Meter B Meters WDE-K50/50WC 50mm PN16 Flanged DN50 WRAS & MID Approved Cold Water Meter, Q3 40 - L200mm Woltman R100 n/a 200mm Stock Item
Water Meter B Meters WDE-K50/65WC 65mm PN16 Flanged DN65 WRAS & MID Approved Cold Water Meter, Q3 63 - L200mm Woltman R100 n/a 200mm Stock Item
Water Meter B Meters WDE-K50/80WC 80mm PN16 Flanged DN80 WRAS & MID Approved Cold Water Meter, Q3 100 - L225mm Woltman R100 n/a 225mm Stock Item
Water Meter B Meters WDE-K50/100WC 100mm PN16 Flanged DN100 WRAS & MID Approved Cold Water Meter, Q3 160 -L250mm Woltman R100 n/a 250mm Stock Item
Water Meter B Meters WDE-K50/125WC 125mm PN16 Flanged DN125 WRAS & MID Approved Cold Water Meter, Q3 160 -L250mm Woltman R100 n/a 250mm Stock Item
Water Meter B Meters WDE-K50/150WC 150mm PN16 Flanged DN150 WRAS & MID Approved Cold Water Meter, Q3 250 -L300mm Woltman R100 n/a 300mm Stock Item
Water Meter B Meters WDE-K50/200WC 200mm PN16 Flanged DN200 WRAS & MID Approved Cold Water Meter, Q3 400 -L350mm Woltman R100 n/a 350mm Stock Item
Water Meter B Meters WDE-K50/50WH 50mm PN16 Flanged DN50 WRAS & MID Approved Hot Water Meter, Q3 40 - L200mm Woltman R100 n/a 200mm Stock Item
Water Meter B Meters WDE-K50/65WH 65mm PN16 Flanged DN65 WRAS & MID Approved Hot Water Meter, Q3 63 - L200mm Woltman R100 n/a 200mm Stock Item
Water Meter B Meters WDE-K50/80WH 80mm PN16 Flanged DN80 WRAS & MID Approved Hot Water Meter, Q3 100 - L225mm Woltman R100 n/a 225mm Stock Item
Water Meter B Meters WDE-K50/100WH 100mm PN16 Flanged DN100 WRAS & MID Approved Hot Water Meter, Q3 160 - L250mm Woltman R100 n/a 250mm Stock Item
Water Meter B Meters WDE-K50/125WH 125mm PN16 Flanged DN125 WRAS & MID Approved Hot Water Meter, Q3 160 - L250mm Woltman R100 n/a 250mm Stock Item
Water Meter B Meters WDE-K50/150WH 150mm PN16 Flanged DN150 WRAS & MID Approved Hot Water Meter, Q3 250 - L300mm Woltman R100 n/a 300mm Stock Item
Water Meter B Meters WDE-K50/200WH 200mm PN16 Flanged DN200 WRAS & MID Approved Hot Water Meter, Q3 400 - L350mm Woltman R100 n/a 350mm Stock Item
Water Meter Accessories B Meters IWM-PL4 n/a Open Collector Pulse Output Module suitable for WDE-K50 Water Meters n/a n/a Pulse n/a Stock Item
Water Meter Accessories B Meters IWM-MB4 n/a M-Bus Module suitable for WDE-K50 Water Meters n/a n/a M-Bus n/a Stock Item
Water Meter Accessories B Meters IWM-TX4 n/a Wireless M-Bus suitable for WDE-K50 Water Meters n/a n/a Wireless M-Bus n/a Stock Item
Water Meter Accessories B Meters IWM-LR4 n/a LoRaWAN suitable for WDE-K50 Water Meters n/a n/a LoRaWAN n/a Stock Item
Water Meter B Meters WDE-K50/P50WC 50mm PN16 Flanged DN50 WRAS & MID Approved Pulsed Cold Water Meter, Q3 40 - L200mm Woltman R100 Pulse 200mm Stock Item
Water Meter B Meters WDE-K50/P65WC 65mm PN16 Flanged DN65 WRAS & MID Approved Pulsed Cold Water Meter, Q3 63 - L200mm Woltman R100 Pulse 200mm Stock Item
Water Meter B Meters WDE-K50/P80WC 80mm PN16 Flanged DN80 WRAS & MID Approved Pulsed Cold Water Meter, Q3 100 - L225mm Woltman R100 Pulse 225mm Stock Item
Water Meter B Meters WDE-K50/P100WC 100mm PN16 Flanged DN100 WRAS & MID Approved Pulsed Cold Water Meter, Q3 160 -L250mm Woltman R100 Pulse 250mm Stock Item
Water Meter B Meters WDE-K50/P125WC 125mm PN16 Flanged DN125 WRAS & MID Approved Pulsed Cold Water Meter, Q3 160 -L250mm Woltman R100 Pulse 250mm Stock Item
Water Meter B Meters WDE-K50/P150WC 150mm PN16 Flanged DN150 WRAS & MID Approved Pulsed Cold Water Meter, Q3 250 -L300mm Woltman R100 Pulse 300mm Stock Item
Water Meter B Meters WDE-K50/P200WC 200mm PN16 Flanged DN200 WRAS & MID Approved Pulsed Cold Water Meter, Q3 400 -L350mm Woltman R100 Pulse 350mm Stock Item
Water Meter B Meters WDE-K50/P50WH 50mm PN16 Flanged DN50 WRAS & MID Approved Pulsed Hot Water Meter, Q3 40 - L200mm Woltman R100 Pulse 200mm Stock Item
Water Meter B Meters WDE-K50/P65WH 65mm PN16 Flanged DN65 WRAS & MID Approved Pulsed Hot Water Meter, Q3 63 - L200mm Woltman R100 Pulse 200mm Stock Item
Water Meter B Meters WDE-K50/P80WH 80mm PN16 Flanged DN80 WRAS & MID Approved Pulsed Hot Water Meter, Q3 100 - L225mm Woltman R100 Pulse 225mm Stock Item
Water Meter B Meters WDE-K50/P100WH 100mm PN16 Flanged DN100 WRAS & MID Approved Pulsed Hot Water Meter, Q3 160 - L250mm Woltman R100 Pulse 250mm Stock Item
Water Meter B Meters WDE-K50/P125WH 125mm PN16 Flanged DN125 WRAS & MID Approved Pulsed Hot Water Meter, Q3 160 - L250mm Woltman R100 Pulse 250mm Stock Item
Water Meter B Meters WDE-K50/P150WH 150mm PN16 Flanged DN150 WRAS & MID Approved Pulsed Hot Water Meter, Q3 250 - L300mm Woltman R100 Pulse 300mm Stock Item
Water Meter B Meters WDE-K50/P200WH 200mm PN16 Flanged DN200 WRAS & MID Approved Pulsed Hot Water Meter, Q3 400 - L350mm Woltman R100 Pulse 350mm Stock Item
Water Meter B Meters WDE-K50/M50WC 50mm PN16 Flanged DN50 WRAS & MID Approved M-Bus Cold Water Meter, Q3 40 - L200mm Woltman R100 M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/M65WC 65mm PN16 Flanged DN65 WRAS & MID Approved M-Bus Cold Water Meter, Q3 63 - L200mm Woltman R100 M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/M80WC 80mm PN16 Flanged DN80 WRAS & MID Approved M-Bus Cold Water Meter, Q3 100 - L225mm Woltman R100 M-Bus 225mm Stock Item
Water Meter B Meters WDE-K50/M100WC 100mm PN16 Flanged DN100 WRAS & MID Approved M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R100 M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/M125WC 125mm PN16 Flanged DN125 WRAS & MID Approved M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R100 M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/M150WC 150mm PN16 Flanged DN150 WRAS & MID Approved M-Bus Cold Water Meter, Q3 250 -L300mm Woltman R100 M-Bus 300mm Stock Item
Water Meter B Meters WDE-K50/M200WC 200mm PN16 Flanged DN200 WRAS & MID Approved M-Bus Cold Water Meter, Q3 400 -L350mm Woltman R100 M-Bus 350mm Stock Item
Water Meter B Meters WDE-K50/M50WH 50mm PN16 Flanged DN50 WRAS & MID Approved M-Bus Hot Water Meter, Q3 40 - L200mm Woltman R100 M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/M65WH 65mm PN16 Flanged DN65 WRAS & MID Approved M-Bus Hot Water Meter, Q3 63 - L200mm Woltman R100 M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/M80WH 80mm PN16 Flanged DN80 WRAS & MID Approved M-Bus Hot Water Meter, Q3 100 - L225mm Woltman R100 M-Bus 225mm Stock Item
Water Meter B Meters WDE-K50/M100WH 100mm PN16 Flanged DN100 WRAS & MID Approved M-Bus Hot Water Meter, Q3 160 - L250mm Woltman R100 M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/M125WH 125mm PN16 Flanged DN125 WRAS & MID Approved M-Bus Hot Water Meter, Q3 160 - L250mm Woltman R100 M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/M150WH 150mm PN16 Flanged DN150 WRAS & MID Approved M-Bus Hot Water Meter, Q3 250 - L300mm Woltman R100 M-Bus 300mm Stock Item
Water Meter B Meters WDE-K50/M200WH 200mm PN16 Flanged DN200 WRAS & MID Approved M-Bus Hot Water Meter, Q3 400 - L350mm Woltman R100 M-Bus 350mm Stock Item
Water Meter B Meters WDE-K50/WM50WC 50mm PN16 Flanged DN50 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 40 - L200mm Woltman R100 Wireless M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/WM65WC 65mm PN16 Flanged DN65 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 63 - L200mm Woltman R100 Wireless M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/WM80WC 80mm PN16 Flanged DN80 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 100 - L225mm Woltman R100 Wireless M-Bus 225mm Stock Item
Water Meter B Meters WDE-K50/WM100WC 100mm PN16 Flanged DN100 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R100 Wireless M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/WM125WC 125mm PN16 Flanged DN125 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R100 Wireless M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/WM150WC 150mm PN16 Flanged DN150 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 250 -L300mm Woltman R100 Wireless M-Bus 300mm Stock Item
Water Meter B Meters WDE-K50/WM200WC 200mm PN16 Flanged DN200 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 400 -L350mm Woltman R100 Wireless M-Bus 350mm Stock Item
Water Meter B Meters WDE-K50/WM50WH 50mm PN16 Flanged DN50 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 40 - L200mm Woltman R100 Wireless M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/WM65WH 65mm PN16 Flanged DN65 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 63 - L200mm Woltman R100 Wireless M-Bus 200mm Stock Item
Water Meter B Meters WDE-K50/WM80WH 80mm PN16 Flanged DN80 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 100 - L225mm Woltman R100 Wireless M-Bus 225mm Stock Item
Water Meter B Meters WDE-K50/WM100WH 100mm PN16 Flanged DN100 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 160 - L250mm Woltman R100 Wireless M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/WM125WH 125mm PN16 Flanged DN125 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 160 - L250mm Woltman R100 Wireless M-Bus 250mm Stock Item
Water Meter B Meters WDE-K50/WM150WH 150mm PN16 Flanged DN150 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 250 - L300mm Woltman R100 Wireless M-Bus 300mm Stock Item
Water Meter B Meters WDE-K50/WM200WH 200mm PN16 Flanged DN200 WRAS & MID Wireless M-Bus Hot Water Meter, Q3 400 - L350mm Woltman R100 Wireless M-Bus 350mm Stock Item
Water Meter B Meters WDE-K50/LR50WC 50mm PN16 Flanged DN50 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 40 - L200mm Woltman R100 LoRaWAN 200mm Stock Item
Water Meter B Meters WDE-K50/LR65WC 65mm PN16 Flanged DN65 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 63 - L200mm Woltman R100 LoRaWAN 200mm Stock Item
Water Meter B Meters WDE-K50/LR80WC 80mm PN16 Flanged DN80 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 100 - L225mm Woltman R100 LoRaWAN 225mm Stock Item
Water Meter B Meters WDE-K50/LR100WC 100mm PN16 Flanged DN100 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 160 -L250mm Woltman R100 LoRaWAN 250mm Stock Item
Water Meter B Meters WDE-K50/LR125WC 125mm PN16 Flanged DN125 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 160 -L250mm Woltman R100 LoRaWAN 250mm Stock Item
Water Meter B Meters WDE-K50/LR150WC 150mm PN16 Flanged DN150 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 250 -L300mm Woltman R100 LoRaWAN 300mm Stock Item
Water Meter B Meters WDE-K50/LR200WC 200mm PN16 Flanged DN200 WRAS & MID Approved LoRaWAN Cold Water Meter, Q3 400 -L350mm Woltman R100 LoRaWAN 350mm Stock Item
Water Meter B Meters WDE-K50/LR50WH 50mm PN16 Flanged DN50 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 40 - L200mm Woltman R100 LoRaWAN 200mm Stock Item
Water Meter B Meters WDE-K50/LR65WH 65mm PN16 Flanged DN65 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 63 - L200mm Woltman R100 LoRaWAN 200mm Stock Item
Water Meter B Meters WDE-K50/LR80WH 80mm PN16 Flanged DN80 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 100 - L225mm Woltman R100 LoRaWAN 225mm Stock Item
Water Meter B Meters WDE-K50/LR100WH 100mm PN16 Flanged DN100 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 160 - L250mm Woltman R100 LoRaWAN 250mm Stock Item
Water Meter B Meters WDE-K50/LR125WH 125mm PN16 Flanged DN125 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 160 - L250mm Woltman R100 LoRaWAN 250mm Stock Item
Water Meter B Meters WDE-K50/LR150WH 150mm PN16 Flanged DN150 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 250 - L300mm Woltman R100 LoRaWAN 300mm Stock Item
Water Meter B Meters WDE-K50/LR200WH 200mm PN16 Flanged DN200 WRAS & MID Approved LoRaWAN Hot Water Meter, Q3 400 - L350mm Woltman R100 LoRaWAN 350mm Stock Item

Water Meter B Meters R160/50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R160 Cold Water Meter, Q3 40 - L200mm Woltman R160 n/a 200mm 3-4 weeks
Water Meter B Meters R160/65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R160 Cold Water Meter, Q3 63 - L200mm Woltman R160 n/a 200mm 3-4 weeks
Water Meter B Meters R160/80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R160 Cold Water Meter, Q3 100 - L225mm Woltman R160 n/a 225mm 3-4 weeks
Water Meter B Meters R160/100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R160 Cold Water Meter, Q3 160 -L250mm Woltman R160 n/a 250mm 3-4 weeks
Water Meter B Meters R160/125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R160 Cold Water Meter, Q3 160 -L250mm Woltman R160 n/a 250mm 3-4 weeks
Water Meter B Meters R160/150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R160 Cold Water Meter, Q3 250 -L300mm Woltman R160 n/a 300mm 3-4 weeks
Water Meter B Meters R160/200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R160 Cold Water Meter, Q3 400 -L350mm Woltman R160 n/a 350mm 3-4 weeks
Water Meter B Meters R160/P50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R160 Pulsed Cold Water Meter, Q3 40 - L200mm Woltman R160 Pulse 200mm 3-4 weeks
Water Meter B Meters R160/P65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R160 Pulsed Cold Water Meter, Q3 63 - L200mm Woltman R160 Pulse 200mm 3-4 weeks
Water Meter B Meters R160/P80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R160 Pulsed Cold Water Meter, Q3 100 - L225mm Woltman R160 Pulse 225mm 3-4 weeks
Water Meter B Meters R160/P100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R160 Pulsed Cold Water Meter, Q3 160 -L250mm Woltman R160 Pulse 250mm 3-4 weeks
Water Meter B Meters R160/P125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R160 Pulsed Cold Water Meter, Q3 160 -L250mm Woltman R160 Pulse 250mm 3-4 weeks
Water Meter B Meters R160/P150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R160 Pulsed Cold Water Meter, Q3 250 -L300mm Woltman R160 Pulse 300mm 3-4 weeks
Water Meter B Meters R160/P200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R160 Pulsed Cold Water Meter, Q3 400 -L350mm Woltman R160 Pulse 350mm 3-4 weeks
Water Meter B Meters R160/M50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R160 M-Bus Cold Water Meter, Q3 40 - L200mm Woltman R160 M-Bus 200mm 3-4 weeks
Water Meter B Meters R160/M65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R160 M-Bus Cold Water Meter, Q3 63 - L200mm Woltman R160 M-Bus 200mm 3-4 weeks
Water Meter B Meters R160/M80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R160 M-Bus Cold Water Meter, Q3 100 - L225mm Woltman R160 M-Bus 225mm 3-4 weeks
Water Meter B Meters R160/M100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R160 M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R160 M-Bus 250mm 3-4 weeks
Water Meter B Meters R160/M125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R160 M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R160 M-Bus 250mm 3-4 weeks
Water Meter B Meters R160/M150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R160 M-Bus Cold Water Meter, Q3 250 -L300mm Woltman R160 M-Bus 300mm 3-4 weeks
Water Meter B Meters R160/M200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R160 M-Bus Cold Water Meter, Q3 400 -L350mm Woltman R160 M-Bus 350mm 3-4 weeks
Water Meter B Meters R160/WM50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 40 - L200mm Woltman R160 Wireless M-Bus 200mm 3-4 weeks
Water Meter B Meters R160/WM65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 63 - L200mm Woltman R160 Wireless M-Bus 200mm 3-4 weeks
Water Meter B Meters R160/WM80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 100 - L225mm Woltman R160 Wireless M-Bus 225mm 3-4 weeks
Water Meter B Meters R160/WM100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R160 Wireless M-Bus 250mm 3-4 weeks
Water Meter B Meters R160/WM125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R160 Wireless M-Bus 250mm 3-4 weeks
Water Meter B Meters R160/WM150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 250 -L300mm Woltman R160 Wireless M-Bus 300mm 3-4 weeks
Water Meter B Meters R160/WM200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 400 -L350mm Woltman R160 Wireless M-Bus 350mm 3-4 weeks
Water Meter B Meters R160/LR50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 40 - L200mm Woltman R160 LoRaWAN 200mm 3-4 weeks
Water Meter B Meters R160/LR65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 63 - L200mm Woltman R160 LoRaWAN 200mm 3-4 weeks
Water Meter B Meters R160/LR80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 100 - L225mm Woltman R160 LoRaWAN 225mm 3-4 weeks
Water Meter B Meters R160/LR100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 160 -L250mm Woltman R160 LoRaWAN 250mm 3-4 weeks
Water Meter B Meters R160/LR125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 160 -L250mm Woltman R160 LoRaWAN 250mm 3-4 weeks
Water Meter B Meters R160/LR150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 250 -L300mm Woltman R160 LoRaWAN 300mm 3-4 weeks
Water Meter B Meters R160/LR200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R160 LoRaWAN Cold Water Meter, Q3 400 -L350mm Woltman R160 LoRaWAN 350mm 3-4 weeks
Water Meter B Meters R250/50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R250 Cold Water Meter, Q3 40 - L200mm Woltman R250 n/a 200mm 3-4 weeks
Water Meter B Meters R250/65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R250 Cold Water Meter, Q3 63 - L200mm Woltman R250 n/a 200mm 3-4 weeks
Water Meter B Meters R250/80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R250 Cold Water Meter, Q3 100 - L225mm Woltman R250 n/a 225mm 3-4 weeks
Water Meter B Meters R250/100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R250 Cold Water Meter, Q3 160 -L250mm Woltman R250 n/a 250mm 3-4 weeks
Water Meter B Meters R250/125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R250 Cold Water Meter, Q3 160 -L250mm Woltman R250 n/a 250mm 3-4 weeks
Water Meter B Meters R250/150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R250 Cold Water Meter, Q3 250 -L300mm Woltman R250 n/a 300mm 3-4 weeks
Water Meter B Meters R250/200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R250 Cold Water Meter, Q3 400 -L350mm Woltman R250 n/a 350mm 3-4 weeks
Water Meter B Meters R250/P50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R250 Pulsed Cold Water Meter, Q3 40 - L200mm Woltman R250 Pulse 200mm 3-4 weeks
Water Meter B Meters R250/P65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R250 Pulsed Cold Water Meter, Q3 63 - L200mm Woltman R250 Pulse 200mm 3-4 weeks
Water Meter B Meters R250/P80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R250 Pulsed Cold Water Meter, Q3 100 - L225mm Woltman R250 Pulse 225mm 3-4 weeks
Water Meter B Meters R250/P100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R250 Pulsed Cold Water Meter, Q3 160 -L250mm Woltman R250 Pulse 250mm 3-4 weeks
Water Meter B Meters R250/P125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R250 Pulsed Cold Water Meter, Q3 160 -L250mm Woltman R250 Pulse 250mm 3-4 weeks
Water Meter B Meters R250/P150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R250 Pulsed Cold Water Meter, Q3 250 -L300mm Woltman R250 Pulse 300mm 3-4 weeks
Water Meter B Meters R250/P200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R250 Pulsed Cold Water Meter, Q3 400 -L350mm Woltman R250 Pulse 350mm 3-4 weeks
Water Meter B Meters R250/M50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R250 M-Bus Cold Water Meter, Q3 40 - L200mm Woltman R250 M-Bus 200mm 3-4 weeks
Water Meter B Meters R250/M65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R250 M-Bus Cold Water Meter, Q3 63 - L200mm Woltman R250 M-Bus 200mm 3-4 weeks
Water Meter B Meters R250/M80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R250 M-Bus Cold Water Meter, Q3 100 - L225mm Woltman R250 M-Bus 225mm 3-4 weeks
Water Meter B Meters R250/M100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R250 M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R250 M-Bus 250mm 3-4 weeks
Water Meter B Meters R250/M125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R250 M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R250 M-Bus 250mm 3-4 weeks
Water Meter B Meters R250/M150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R250 M-Bus Cold Water Meter, Q3 250 -L300mm Woltman R250 M-Bus 300mm 3-4 weeks
Water Meter B Meters R250/M200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R250 M-Bus Cold Water Meter, Q3 400 -L350mm Woltman R250 M-Bus 350mm 3-4 weeks
Water Meter B Meters R250/WM50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 40 - L200mm Woltman R250 Wireless M-Bus 200mm 3-4 weeks
Water Meter B Meters R250/WM65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 63 - L200mm Woltman R250 Wireless M-Bus 200mm 3-4 weeks
Water Meter B Meters R250/WM80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 100 - L225mm Woltman R250 Wireless M-Bus 225mm 3-4 weeks
Water Meter B Meters R250/WM100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R250 Wireless M-Bus 250mm 3-4 weeks
Water Meter B Meters R250/WM125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 160 -L250mm Woltman R250 Wireless M-Bus 250mm 3-4 weeks
Water Meter B Meters R250/WM150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 250 -L300mm Woltman R250 Wireless M-Bus 300mm 3-4 weeks
Water Meter B Meters R250/WM200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID Wireless M-Bus Cold Water Meter, Q3 400 -L350mm Woltman R250 Wireless M-Bus 350mm 3-4 weeks
Water Meter B Meters R250/LR50WC 50mm PN16 Flanged WDE-K50 DN50 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 40 - L200mm Woltman R250 LoRaWAN 200mm 3-4 weeks
Water Meter B Meters R250/LR65WC 65mm PN16 Flanged WDE-K50 DN65 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 63 - L200mm Woltman R250 LoRaWAN 200mm 3-4 weeks
Water Meter B Meters R250/LR80WC 80mm PN16 Flanged WDE-K50 DN80 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 100 - L225mm Woltman R250 LoRaWAN 225mm 3-4 weeks
Water Meter B Meters R250/LR100WC 100mm PN16 Flanged WDE-K50 DN100 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 160 -L250mm Woltman R250 LoRaWAN 250mm 3-4 weeks
Water Meter B Meters R250/LR125WC 125mm PN16 Flanged WDE-K50 DN125 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 160 -L250mm Woltman R250 LoRaWAN 250mm 3-4 weeks
Water Meter B Meters R250/LR150WC 150mm PN16 Flanged WDE-K50 DN150 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 250 -L300mm Woltman R250 LoRaWAN 300mm 3-4 weeks
Water Meter B Meters R250/LR200WC 200mm PN16 Flanged WDE-K50 DN200 WRAS & MID R250 LoRaWAN Cold Water Meter, Q3 400 -L350mm Woltman R250 LoRaWAN 350mm 3-4 weeks


SizeDN50
(2″)		65
(2″1/2)		80
(3”)		100
(4”)		125
(5”)		150
(6”)		200
(8”)
Overload flow rate Q4m³/h5078.75125200200312.5500
Permanent flow rate Q3m³/h4063100160160250400
Minimum readingl0.50.50.50.50.555
Maximum readingm³9,999,9999,999,9999,999,9999,999,9999,999,99999,999,99999,999,999
Maximum pressure loss at Q3bar0.250.400.250.400.400.160.40
Max admissible pressure MAPbar16161616161616
R=100H ↑DN50
(2″)		65
(2”1/2)		80
(3”)		100
(4”)		125
(5”)		150
(6”)		200
(8″)
Transitional flow rate Q2m³/h0.641.0081.602.562.564.006.40
Minimum flow rate Q1m³/h0.400.631.001.601.602.504.00
R=160H ↑DN50
(2″)		65
(2”1/2)		80
(3”)		100
(4”)		125
(5”)		150
(6”)		200
(8″)
Transitional flow rate Q2m³/h0.400.631.001.601.602.504.00
Minimum flow rate Q1m³/h0.250.3940.6251.001.001.5632.50

SizeDN50
(2″)		65
(2″1/2)		80
(3″)		100
(4″)		125
(5″)		150
(6″)		200
(8″)

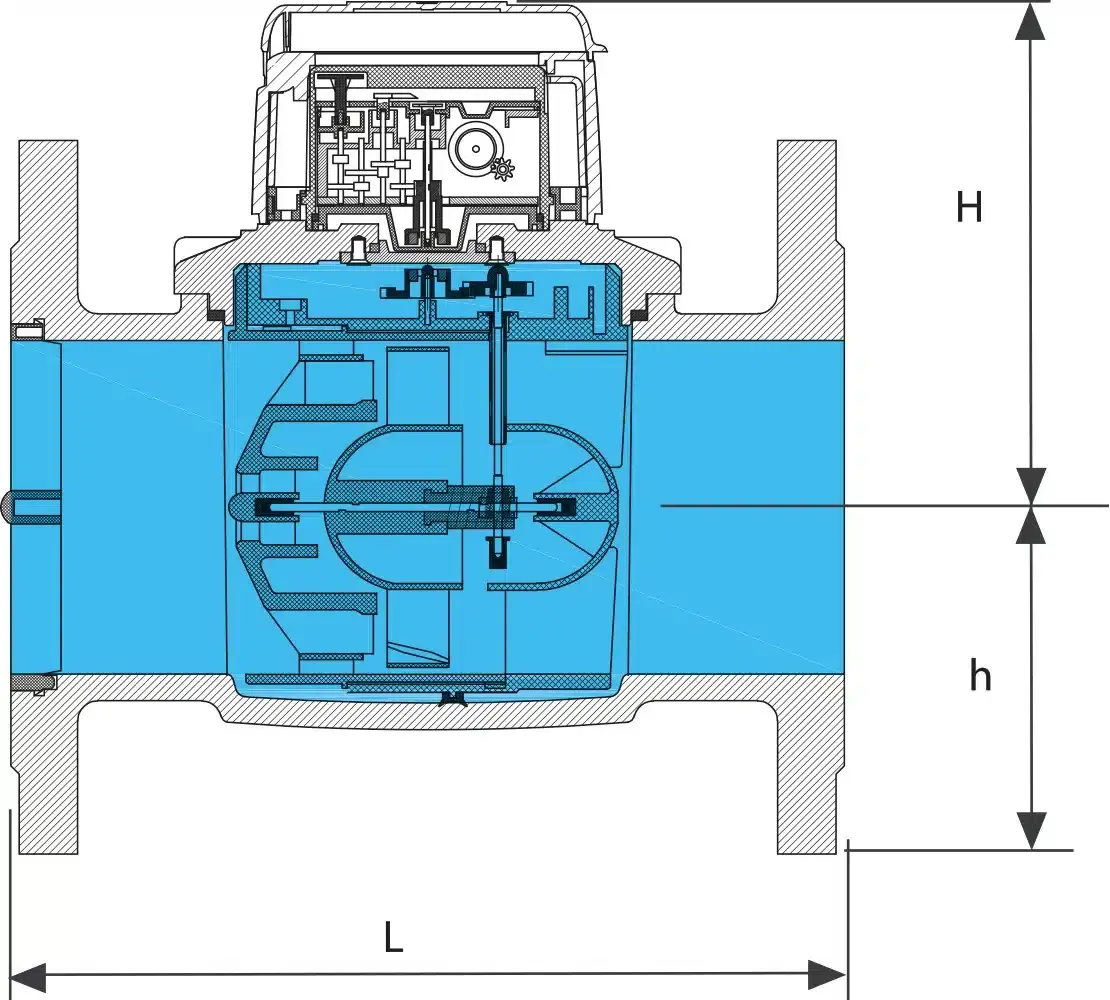

Lmm200200225250250300350
Hmm130130152152152181181
hmm788695104117133162
WeightKg8.59.513.5151830.543

Flange ISO 7005-2 / EN 1092-2 PN16



Get in touch

Have a question? Our team can help.


Contact us
