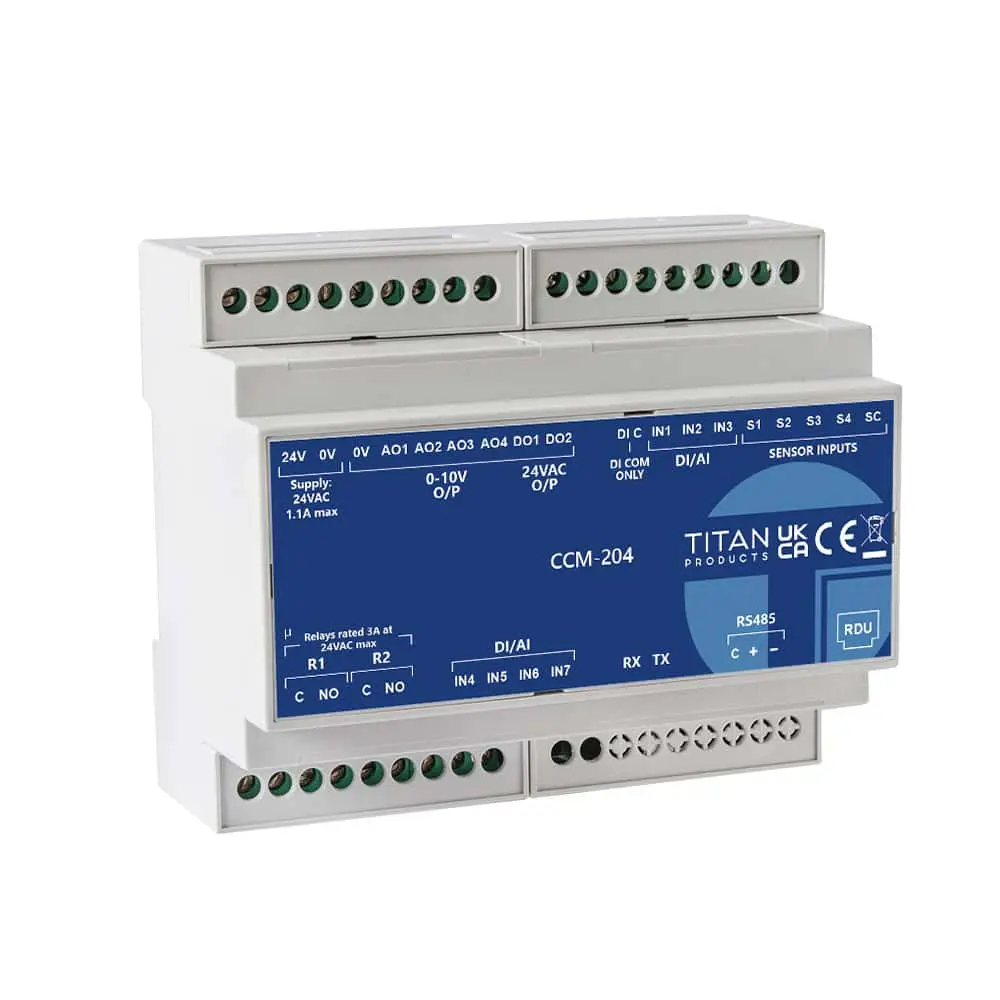

BACnet MS/TP Variable Air Volume Temperature & CO2 Controller
The CCM-204/VAV controller is an applications specific controller which can be used as standalone or part of an integrated BMS using the native BACnet MS/TP communications.
The controller incorporates all the inputs, outputs, features and functions required to provide flexible and accurate environmental control on demand of a variable air volume (VAV) system based on temperature and CO2 conditions within the measured space.
Product Information
Key Benefits:
- BACnet MS/TP communications
- Flexible temperature and fan control options for VAV control applications
- 0-10V or 2-10V CO2 damper control
- 4 x temperature inputs for averaging options, room sensors, external sensors and setpoint adjustment
- Options for re-heat control
- Damper feedback to determine control parameters
- Reverse damper control for summer/winter changeover
- Fault indication for high-temperature cut-out and no airflow indication
- Summer compensation
- Fully compatible with our attractive RDU-4 display
