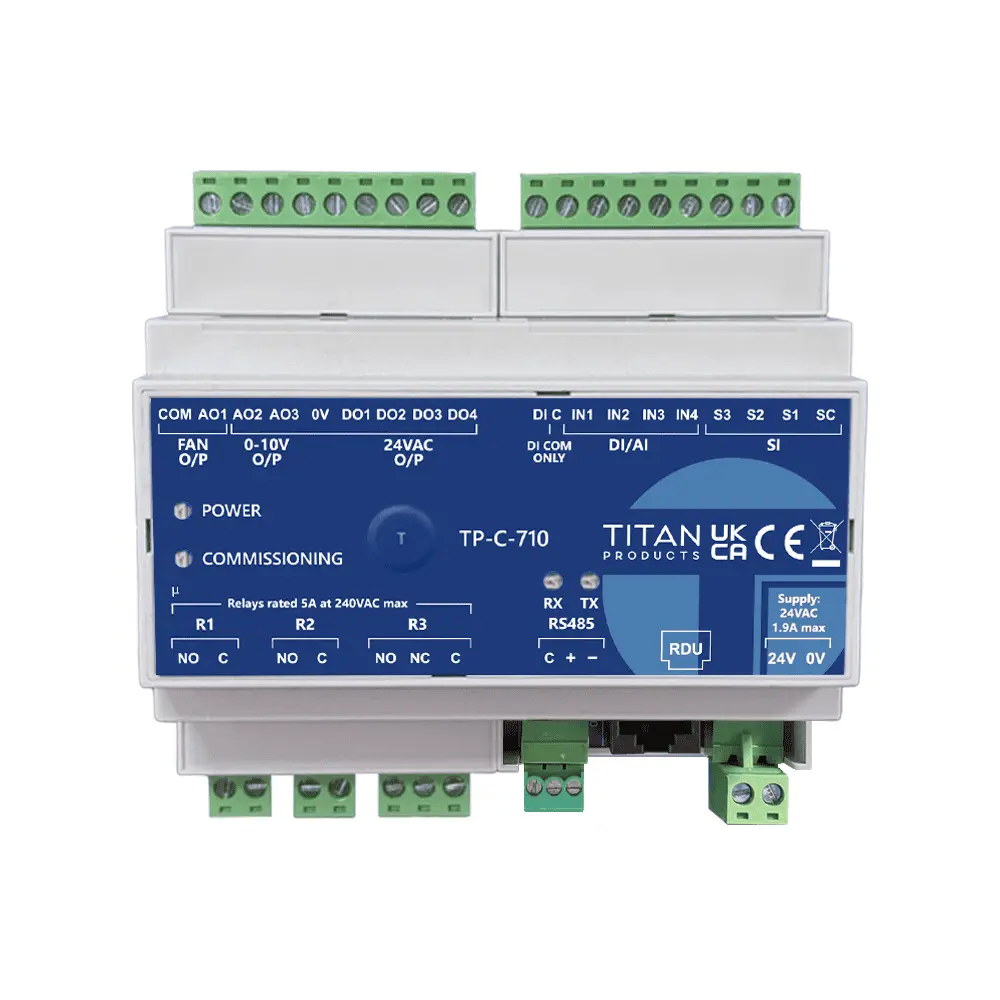

BACnet MS/TP Fan Coil Controllers
The TP-C-710 series from Titan Products delivers flexible and energy-efficient control for 2-pipe and 4-pipe fan coil applications. With BACnet MS/TP communications and a versatile mix of I/O, the controllers support 0–10V and 24VAC actuators plus 0–10V EC fan control.
- TP-C-710: Standard fan coil controller.
- TP-C-710-IFR: With three interlocked fan relays for retrofit and 3-speed fans.
- TP-C-710R: For residential fan coil and underfloor heating control.
All models are easily configured via the ToolBox Commissioning Platform, making setup fast and seamless.
Product Information
Key Benefits of the TP-C-710 Series & ToolBox Commissioning Platform:
- Flexible control options for 2-pipe and 4-pipe fan coil units, underfloor heating, and multiple heating/cooling applications.
- BACnet MS/TP communications for seamless integration.
- Support for 0–10V and 24VAC actuators plus 0–10V EC fan control.
- Interlocked relays for retrofit applications requiring three-speed relay fan control.
- Integrated and independent heating control loop for underfloor or secondary zones, including bathroom control options.
- Compact footprint and easy installation for new-build or retrofit projects.
-
Fully commissioned via Titan ToolBox, with:
- Auto-discovery and addressing of controllers

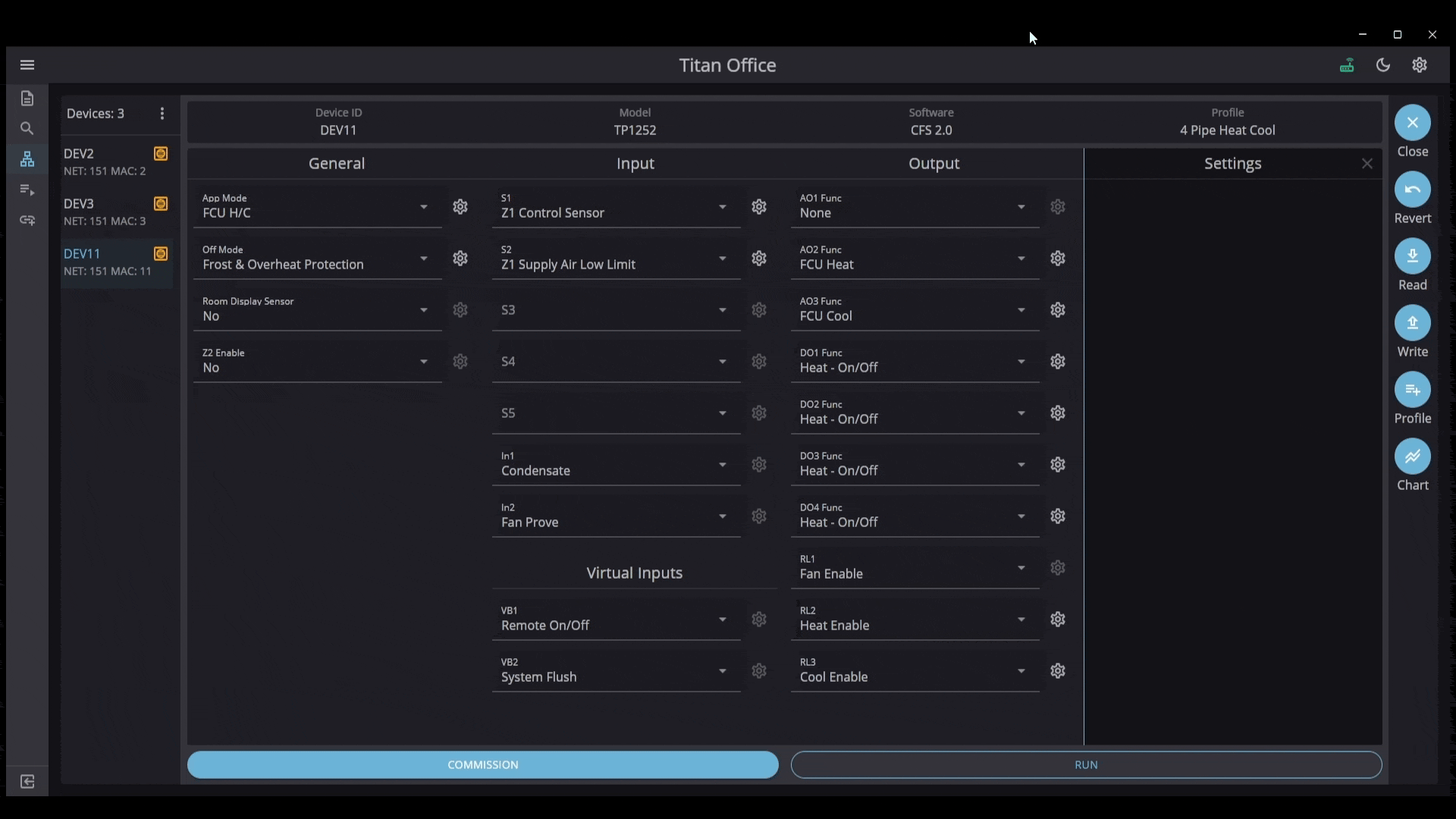

- Quick allocation of I/O and setting of parameters

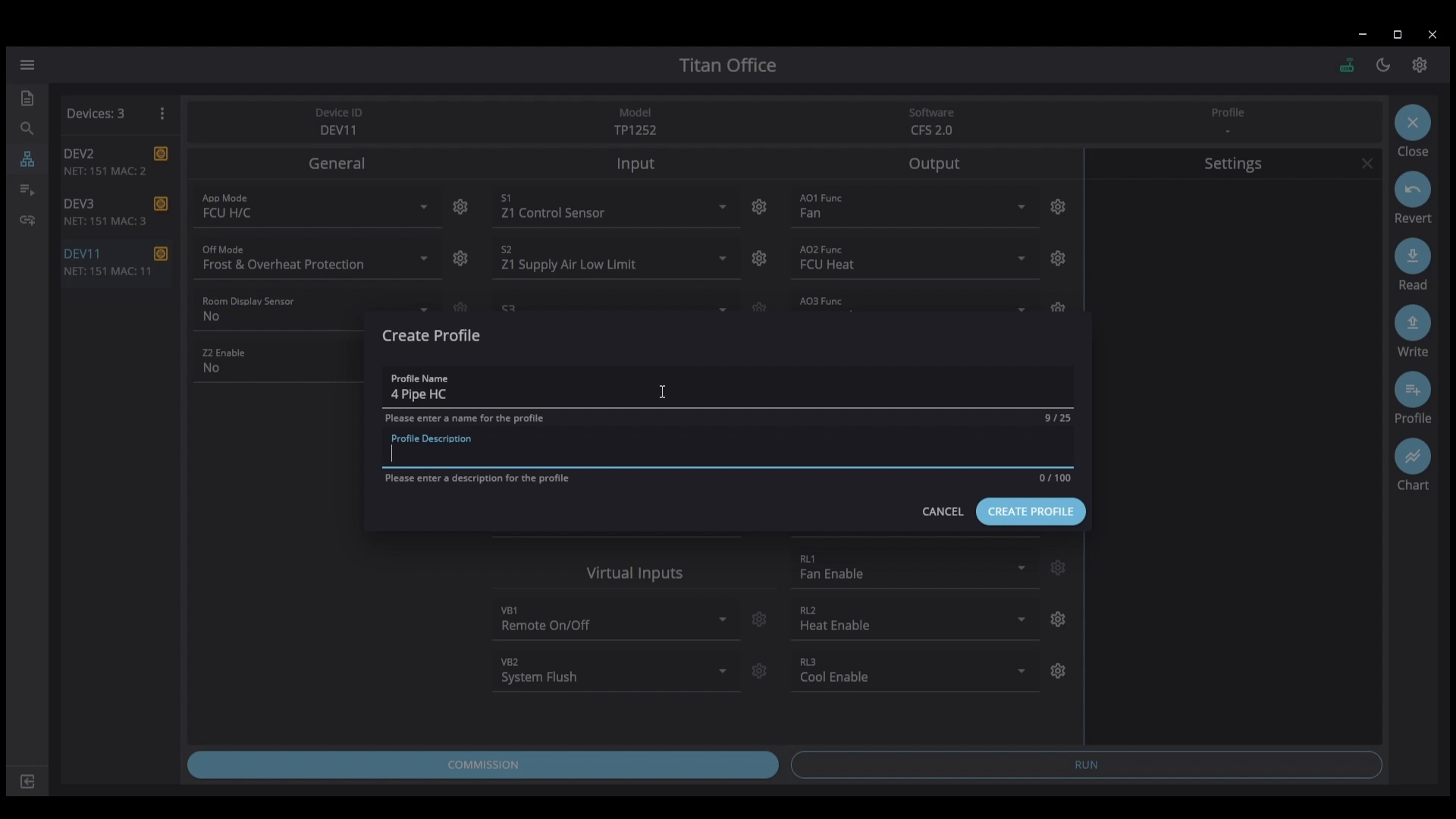

- Creation and copying of control profiles

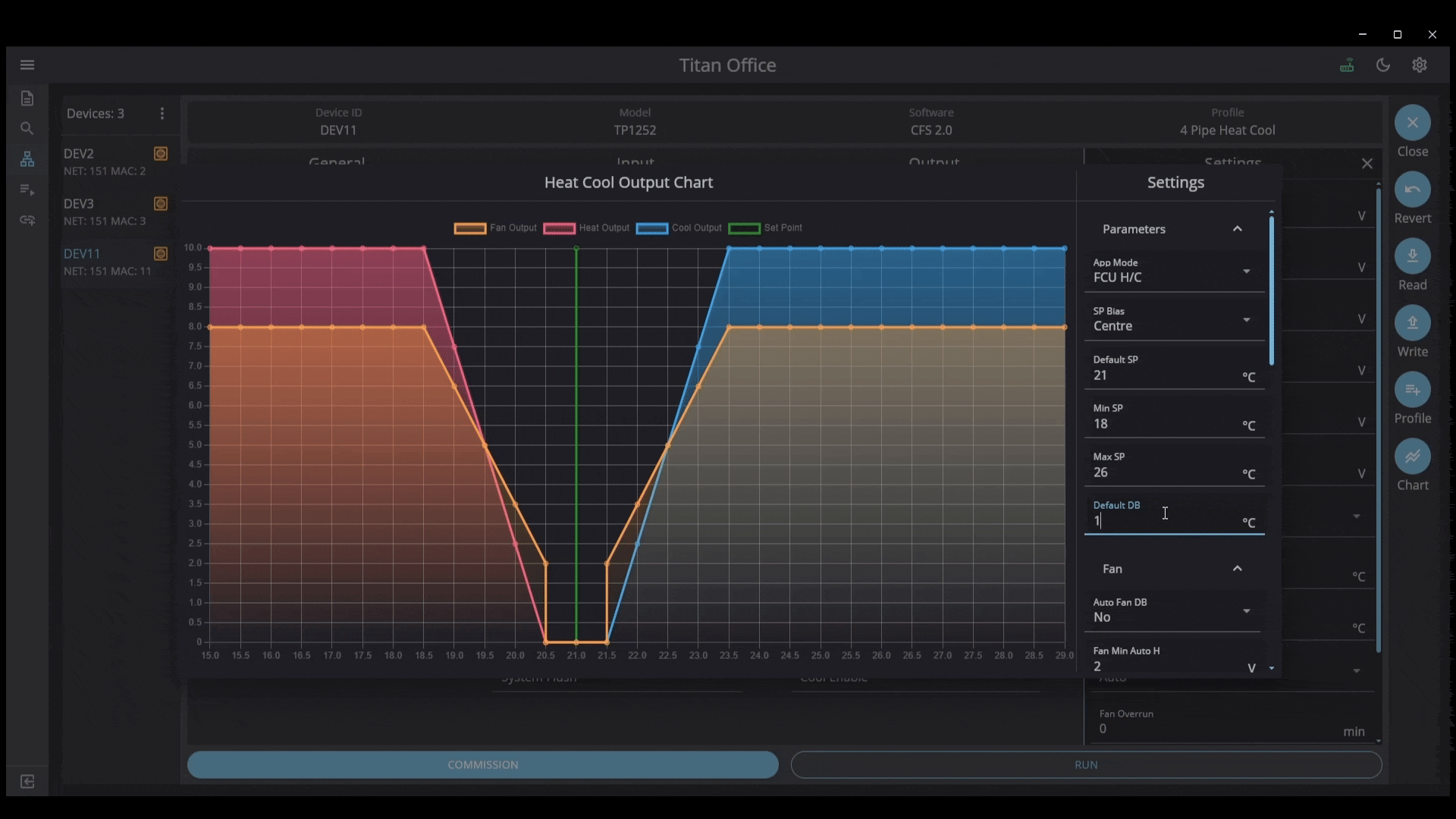

- Graphical view and adjustment of control sequences
- Input/output proving and testing

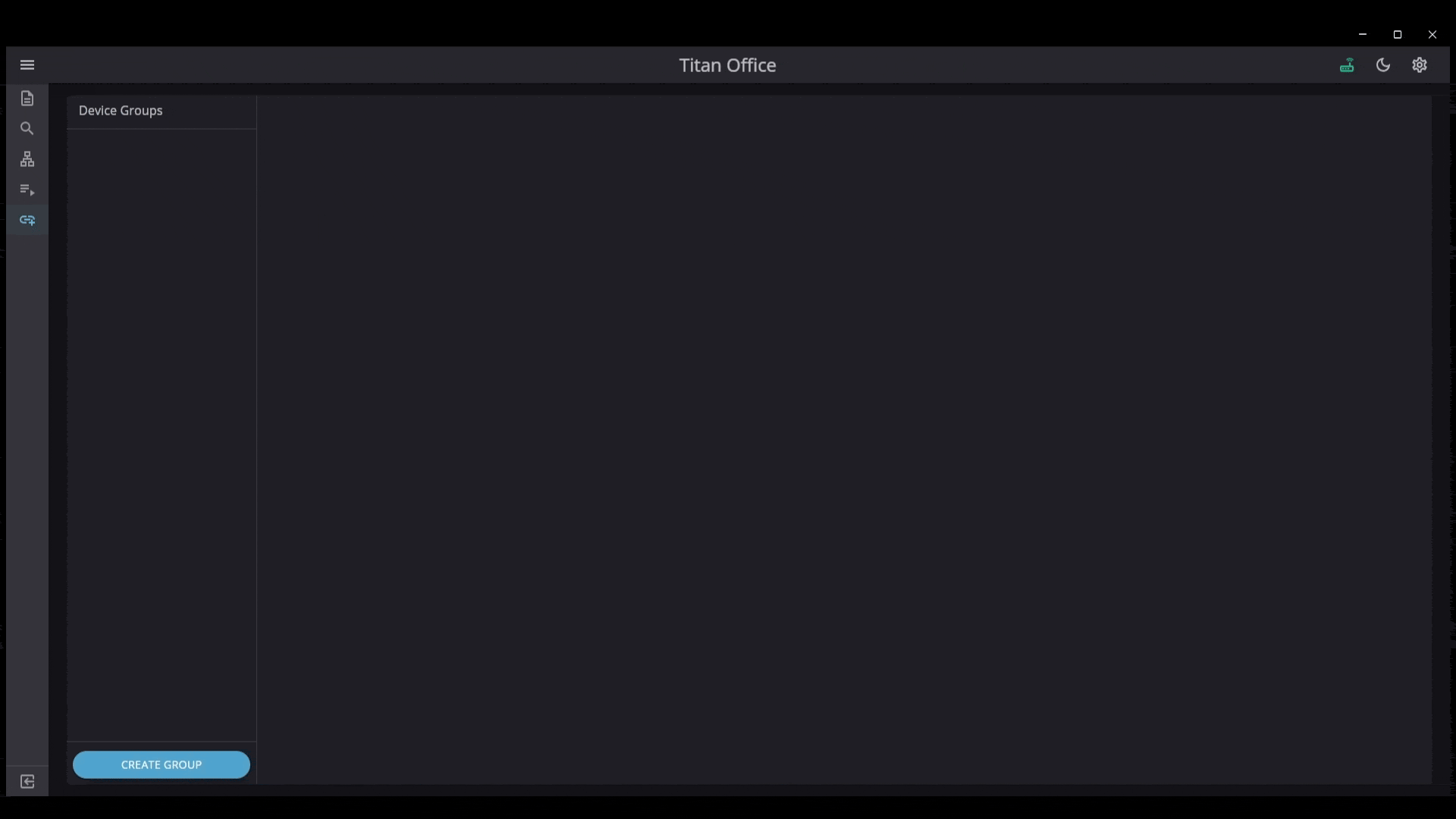

- Master/slave group configuration
All Titan Products BACnet controllers are compatible with our 10K3 temperature sensors. We are happy to discuss your requirements prior to purchase to ensure the most suitable solution for your application.
