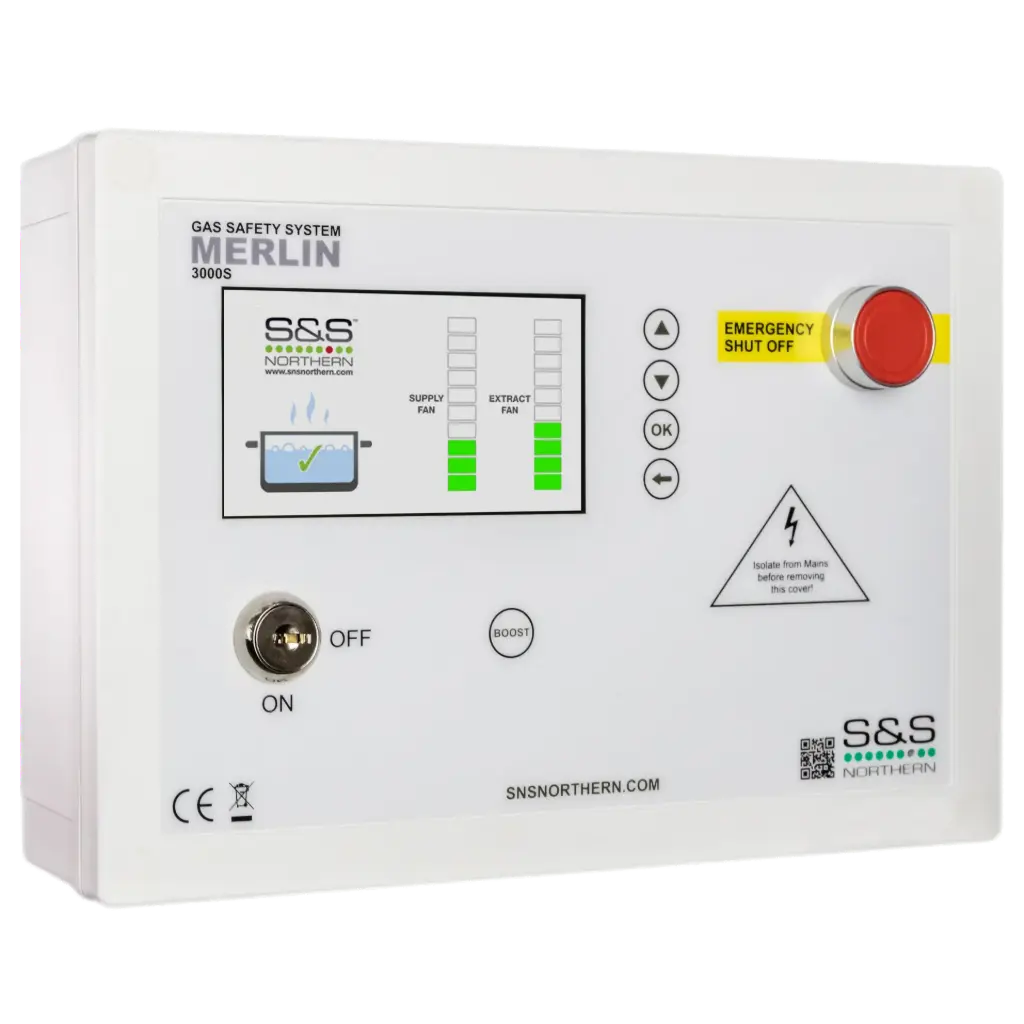

Merlin 3000S Demand Controlled Kitchen Ventilation Energy Saving System
Save Energy, Improve Kitchen Comfort, Reduce Carbon & HVAC Load
The Merlin 3000S energy saving control system has been specifically designed for NEW and RETROFIT store applications, providing automated control over the ventilation system by adjusting exhaust and kitchen HVAC inlet air in response to the presence and level of cooking activity. Based on the temperature inside the exhaust hoods, the Merlin 3000S maximizes kitchen ventilation energy efficiency and reduces energy waste while improving kitchen comfort.
Qualified for Energy Technology List (Approved by UK Government)
Product Information
- Qualified for Energy Technology List (ETL) - (Approved by UK Government)
- Controls ventilation automatically based on real-time gas consumption and CO2 levels in the kitchen
- Uses optical and duct heat sensors to maintain optimum ventilation rate as per DW172
- Reduces ventilation rates when gas usage and CO2 is low to reduce energy consumption
- Minimises heat loss via extraction by reducing the fan speeds when gas usage and CO2 are minimal
- Pulsed output gas meter can be linked with other building systems to monitor the kitchen
- Reduces ventilation noise levels at times of low kitchen activity
- Takes responsibility for sufficient ventilation control away from kitchen staff
- Maintains the air balance between supply and extract ventilation creating a negative pressure in the kitchen to control cooking odours
- Interlock with ventilation using with either Fan Current Sensors or Air PD Switches
- Optional Gas Proving function
- Clear full colour TFT display for user info and easy calibration
- Will accept Methane, LPG and CO detectors
- Can be linked to remote knock-off buttons, fire alarm and BMS
- Full compliance with BS6173, IGEM/UP19, DW172 & CIBSE TM50 - UK Standards
- Covered by S&S Middle East 3 Year Warranty
