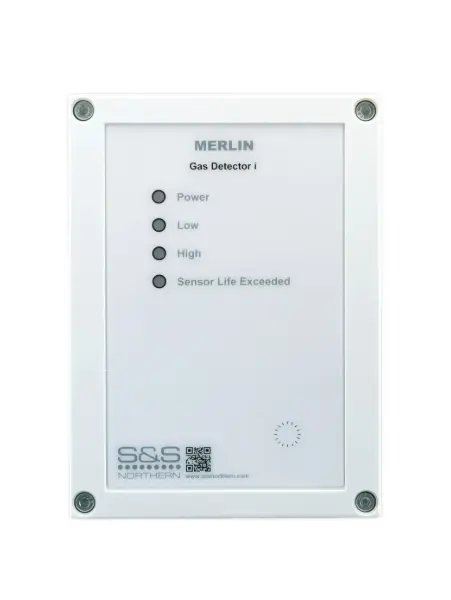

Merlin Gas Detector i
2 x Alarm Outputs | 0-10VDC Output | LED Indication
The i range of gas detectors are used in various applications such as boiler/plant rooms, hospitals, laboratories and high rise buildings. Featuring a traffic light indicator display that changes color based on gas levels, it provides clear visual alerts. Its modern and compact design, along with plug & play installation, ensures easy setup and use. The i Detector supports BMS/BAS communications, includes an in-built audible alarm, and has an alarm relay dry contact for added safety.
Product Information
- 24VAC or DC powered
- Traffic light indication
- Built-in audible alarm
- Two alarm relay outputs
- 0-10VDC variable output
- BMS standalone compatibility
- Various gas detector types available
- End of life reminder
- Covered by S&S Middle East 3 Year Warranty
Target Gas | Indicating Range | Alarm 1 (Pre Alarm) | Alarm 2 (Alarm) | End Of Life |
Natural Gas / Methane (NG/CH4) | 0-20% LEL | <8% LEL | <10% LEL | 10 Years |
Liquid Petroleum Gas (LPG) | 0-20% LEL | <8% LEL | <10% LEL | 10 Years |
Carbon Monoxide (CO) | 0-999 ppm | <20 ppm | Carbon Monoxide TWA (Time Weighted Average) Exposure Alarm Levels: | 5 Years |
Hydrogen | 0-20% LEL | <8% LEL | <10% LEL | 10 Years |
Hydrogen Sulphide | 0-20 ppm | <5 ppm | <10 ppm | 3 Years |
Nitrogen Dioxide | 0-20 ppm | <0.7 ppm | <2 ppm | 3 Years |
Carbon Dioxide | 0-5000 ppm | <800 ppm | <1000ppm ppm | 10 Years |
These recommended heights may vary based on air flow and temperature conditions in addition to the proposed application and location:
Target Gas | Typical Detector Positioning |
Natural Gas / Methane (NG/CH4) | High Level - 300mm (1ft) from ceiling |
Liquid Petroleum Gas (LPG) | Low Level - 300mm (1ft) from ground level |
Carbon Monoxide (CO) | Breathing Zone - 1700mm (5ft 6") from ground level |
Hydrogen | High Level - 300mm (1ft) from ceiling |
Hydrogen Sulphide | Low Level - 300mm (1ft) from ground level |
Nitrogen Dioxide | Breathing Zone - 1700mm (5ft 6") from ground level |
Carbon Dioxide | Breathing Zone - 1700mm (5ft 6") from ground level |
Carbon Monoxide Gas Detector i User & Installation Guide
Natural Gas Detector i User & Installation Guide
LPG Gas Detector i User & Installation Guide
Hydrogen Gas Detector i User & Installation Guide
Carbon Dioxide Detector i User & Installation Guide
Nitrogen Dioxide Detector i User & Installation Guide
