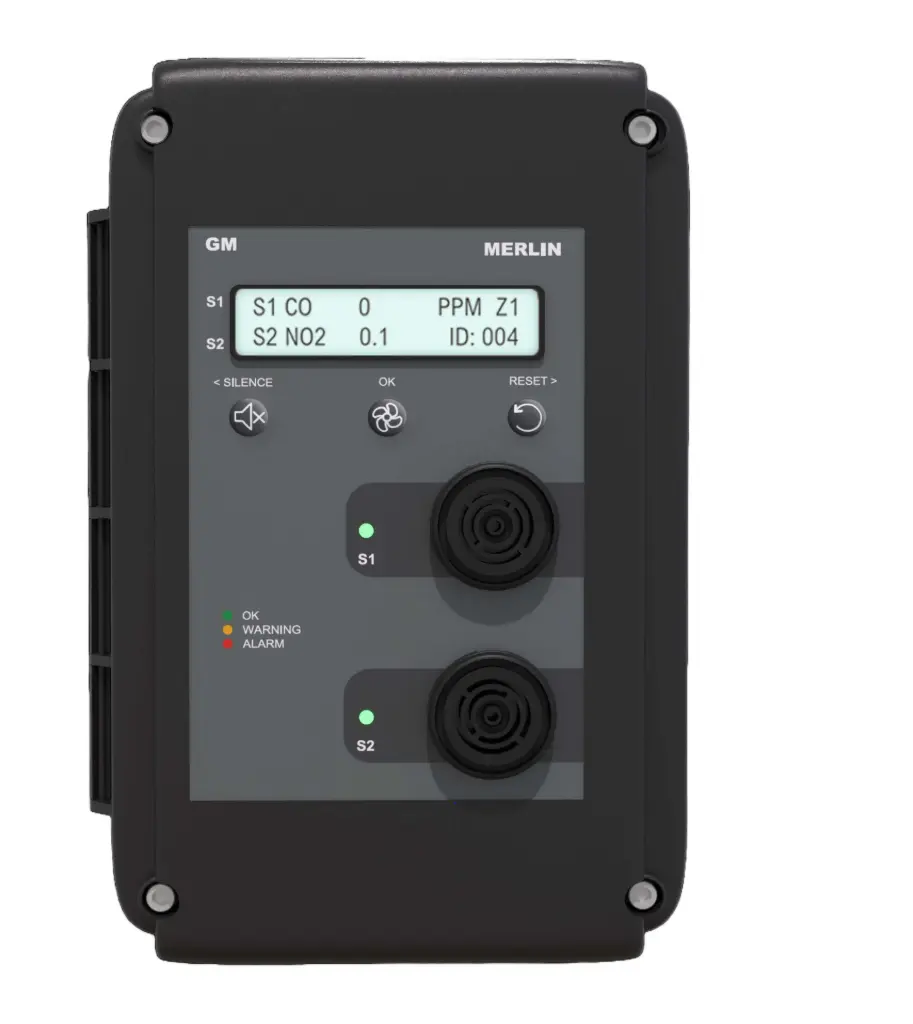

GM200 CO/NO2/PM10 Gas Monitor with Bacnet & Modbus
- Single, dual and triple gas monitoring
- Replaceable, plug-and-play smart sensor modules
- Hinged cover for ease of installation
- Non-intrusive calibration
- Splash guard accessories for improved IP rating
- Modbus RTU or BACnet MS/TP (field selectable)
- 0-10V or 0-20mA output (field selectable)
- 4 x Relay outputs (8A/250V)
- 24V AC/DC or 230V power supply
- Display screen and RGB LED status indication
- Configurable audible alarm – 85dB
- Operating Temperature -4° to 122°F
- Gas Performance UL2075
- Supplied calibrated
- Strong anti-interference circuit boards and RoHS compliant
- Corrosion-resistant enclosure with optional accessories
- Indoor & outdoor use (with additional weatherproof sensor covers)
Product Information
The GM Series 200 has been designed as a tri-combined detector including a PM10 sensor. Designed for a wide range of applications, this 24V powered detector with RS485 BACnet MS/TP or Modbus RTU communications offers unparalleled reliability and precision. With customizable parameters accessible on-site, engineers can tailor its configuration and settings to suit the unique needs of each project, minimizing the requirement for additional hardware and streamlining the scope of work for controls contractors to ensure the sequence of operation can be achieved.
The GM Series 200 features two alarm levels, 8A relays, 0-10V & 4-20mA outputs with configurable time delays, a selectable audible alarm, LCD display indicating power, alarm status, gas type, concentration, measurement, address, and fault conditions.
The equipment can be used indoors or outdoors. If used outdoors, choose a sheltered location which is protected from direct sunlight, rain, and other extreme conditions.
Example partcode breakdown:
GM200 – [S1 Gas] – [S2 Gas] - PM10
Gas Selection: Select one (1) for each Gas 1 and Gas 2
Gas Type | Code |
Carbon Monoxide (CO) | CO |
Nitrogen Dioxide (NO2) | NO2 |
Natural Gas (NG) | COMING SOON |
Hydrogen (H2) | COMING SOON |
Butane / Propane (LPG) | COMING SOON |
Oxygen (O2) | COMING SOON |
No Sensor | Leave Blank |
Splash Guard Option: Order GM-SPL
Option | Code |
Splash Guard | GM-SPL |
