Free Fall Fire Valves
A compliant, reliable fire valve that doesn’t flinch
The Original Landon Kingsway Free Fall Fire Valves are a critical component in any fuel-related fire protection system. Designed specifically for generators, diesel tanks, and plant rooms, these valves are built to cut off or dump the fuel supply in the event of excessive heat or fire.
Product Information
Automatic fire detection you can trust
These thermal-triggered fire valves are engineered to detect:
- Heat build-up from engine overrun
- Fire within generator enclosures
- Ventilation or louvre actuator failures, where heat builds due to poor airflow
When the ambient temperature reaches 71°C (standard), the fusible link melts, triggering the valve to close or dump fuel immediately. This automatic action helps to prevent escalation of fire risk, keeping personnel and equipment safe.
How it works
Each Free Fall Fire Valve is powered by a drop-arm or dead-weight system, where the weight begins to fall before it moves the valve lever. This pre-drop design ensures momentum is built up, allowing reliable valve activation even under marginal trigger conditions.

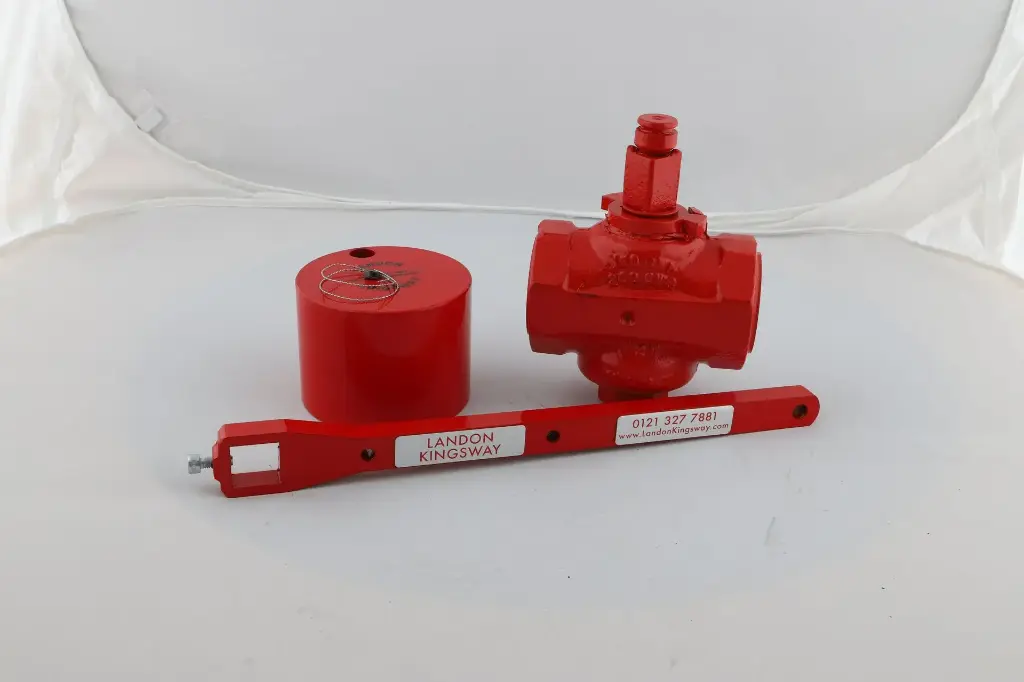

Valve cable kits are supplied as standard and include:
| Weight | Lever | Pulley |
| Fusible Link | Cable | Connectors |
These valves are suitable for use with multiple fuel types:
- Diesel
- Heating oil
- Lubricating oil
- Mineral oil
- Gas oil
- Rapeseed oil
You can also enhance your installation with the below optional accessories & add-ons:
- Tilt Position Switch
- Low level Installation Kit
Technical Specifications
Material: Cast Iron (painted red)
Max. Pressure: 14 Bar (200psi)
Cable Length: Standard 9m
Fusible Link Rating: 71°C (standard)
Maintenance: Test & lubricate 3x per year
Valve Rotation: 90° (¼ turn)
Lubricant: Type 90 (4″ and above); Type 44 (under 4″)
Flange Specification: BS4504, PN16
Screwed Specification: BSPT
Weights Available: 2.25kg, 4.5kg, 6.8kg (5lb, 10lb, 15lb)
109037XX FREEFALL FIRE VALVE MKII Download
Lubrication and Sealing Compound Download
FREE FALL FIRE VALVE SYSTEM 1 Download
Free Fall Fire Valve Accessories Download
FREE FALL FIRE VALVE SYSTEM 2 Download
FREE FALL FIRE VALVE SYSTEM 3 Download
0002-Lubrication of Landon Kingsway Free Fall Fire Valve Download
