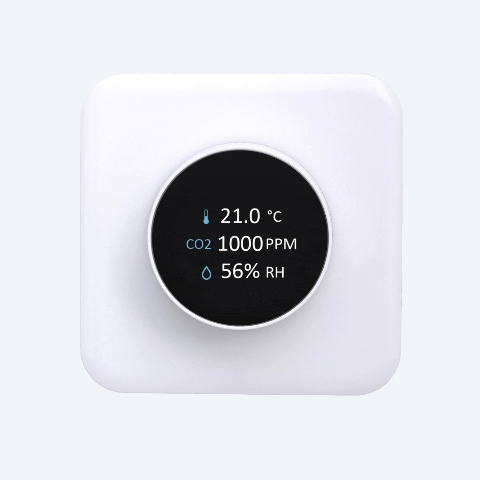

Rotary Interface (TP-UI-RO)
A Networkable BACnet User Interface
The Rotary is a fully networkable BACnet MS/TP user interface, with easy to configure menus which allows its application to range from a simple set point adjuster to a complete control interface. Providing a great user experience for the end user, via its rotating dial, easy to navigate menus and push to select function..Product Information
Watch video here: https://vimeo.com/1049619011

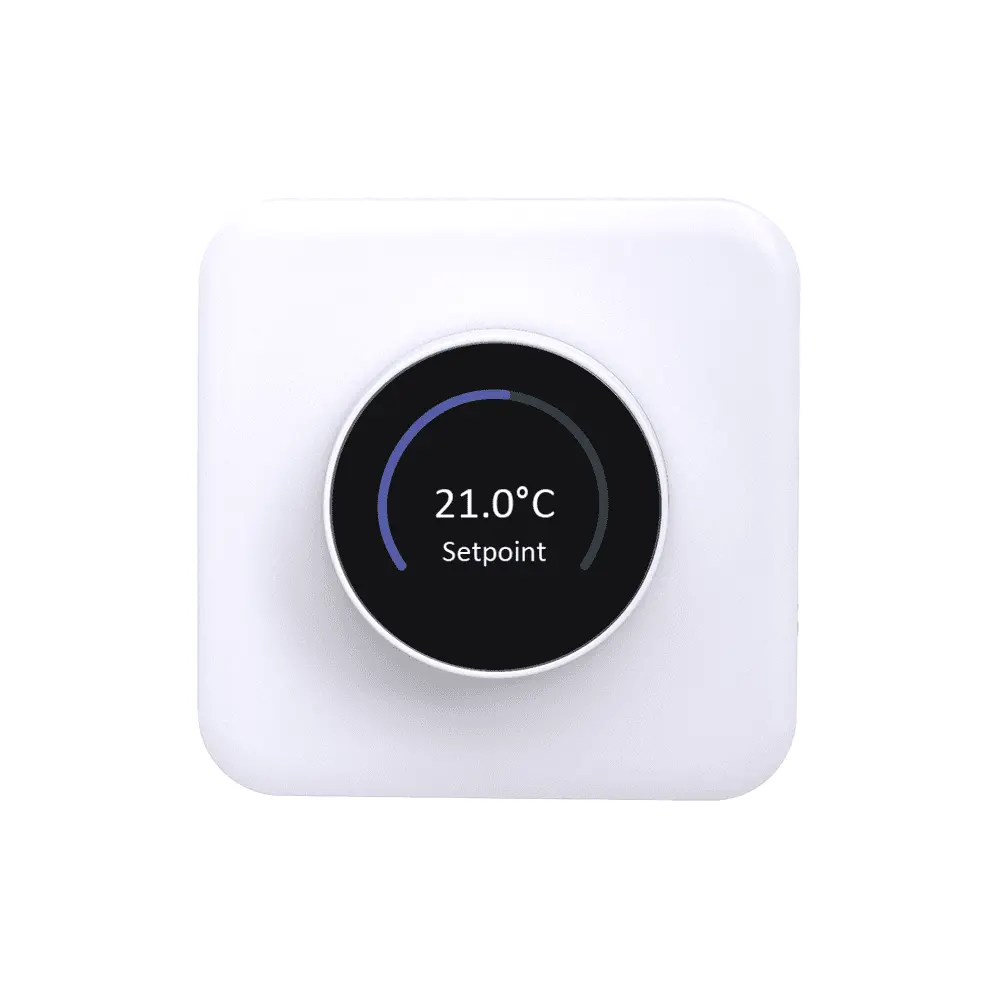

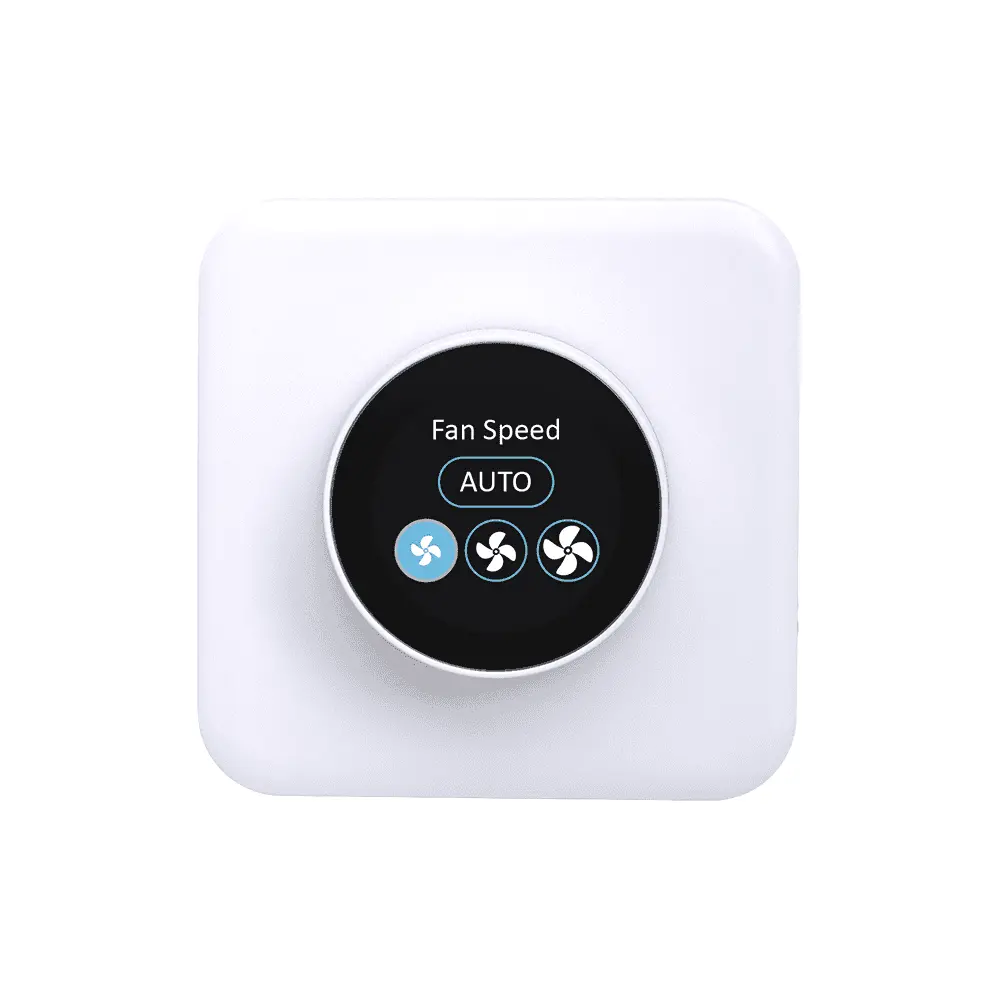

Configuration options allow the device setup to range from a simple set point adjuster to a complete control interface with set point, fan speed and mode adjust. Display options are configured easily via BACnet or locally at the device itself.

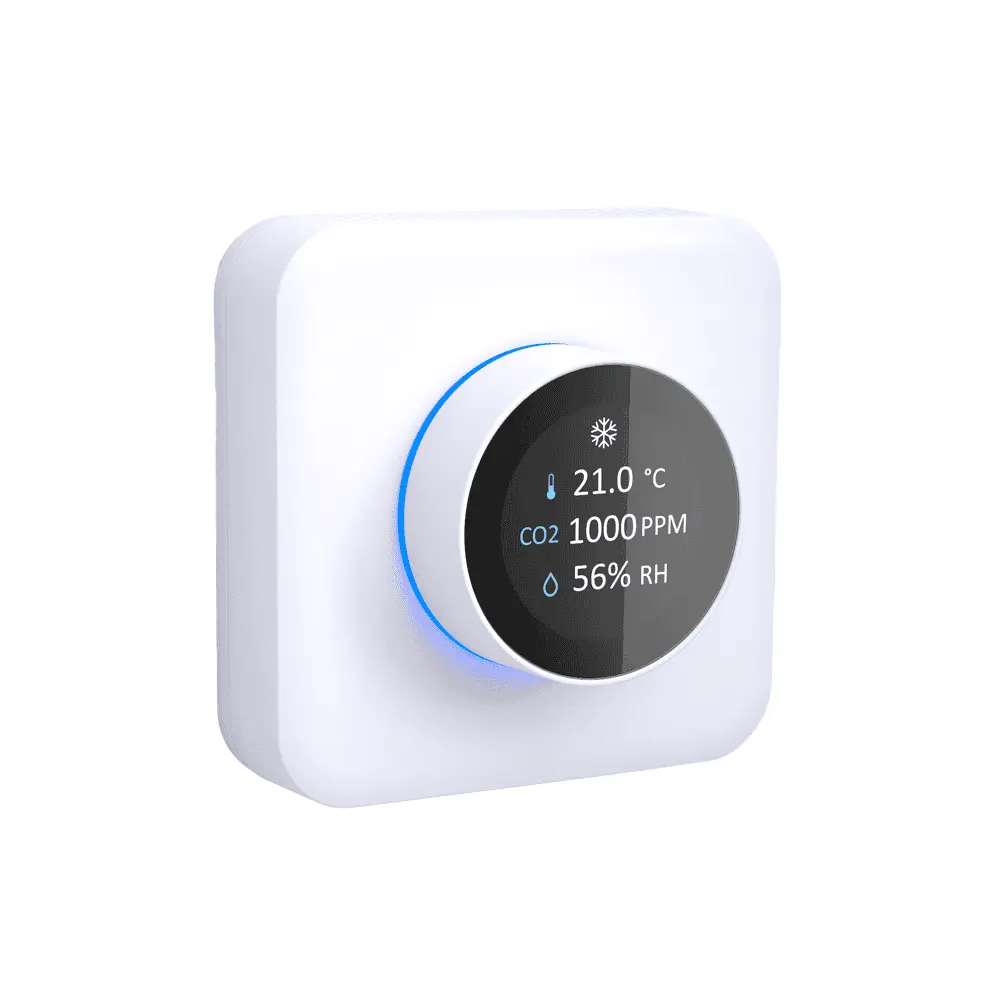

Supplied with in-built temperature & humidity monitoring as standard, CO2 monitoring can also be added with the option for the LED HALO to provide tri-colour visual indication of CO2 levels. The HALO can also be used to provide indication of heat / cool operation.
The Rotary can connect and power directly from the Titan TP-710 MS/TP controllers, or communicate to a BACnet network for 3rd party integration via its inbuilt RS485 BACnet MS/TP communications.
Key Benefits:
- BACnet MS/TP communications for network integration
- Configurable set point, fan speed and control mode adjust menus
- In-built temperature and humidity monitoring
- Option for inbuilt CO2 monitoring
- Full colour display
- Simple and intuitive end user experience
Partcode | Description |
TP-UI-RO | Rotary interface c/w temperature and humidity monitoring (White enclosure) |
TP-UI-RO-CO2 | Rotary interface c/w CO2 temperature and humidity monitoring (White enclosure) |

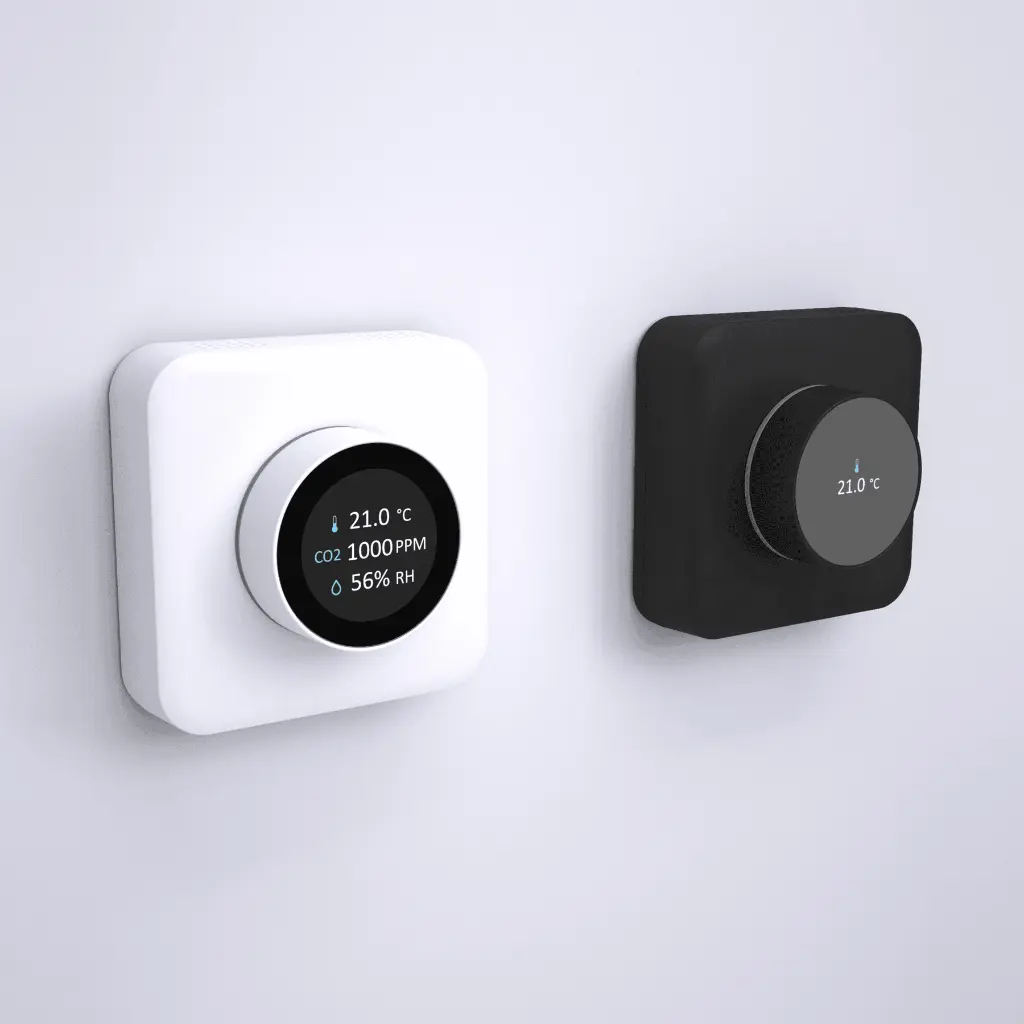

TP-UI-RO-B | Rotary interface c/w temperature and humidity monitoring (Black enclosure) |
TP-UI-RO-CO2-B | Rotary interface c/w CO2 temperature and humidity monitoring (Black enclosure) |
